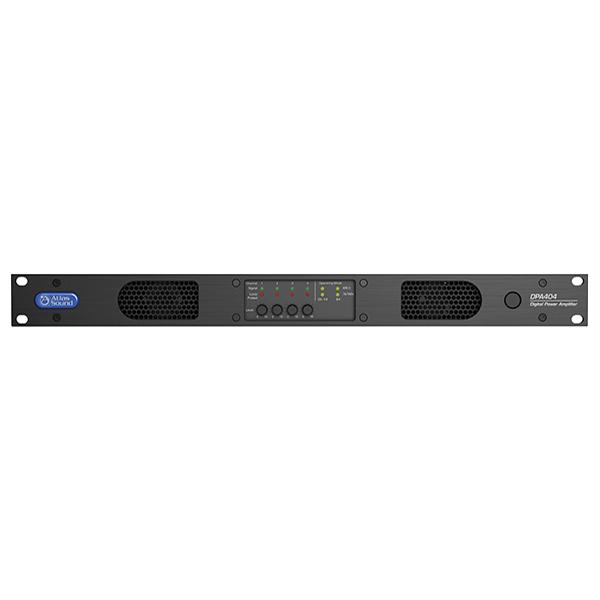

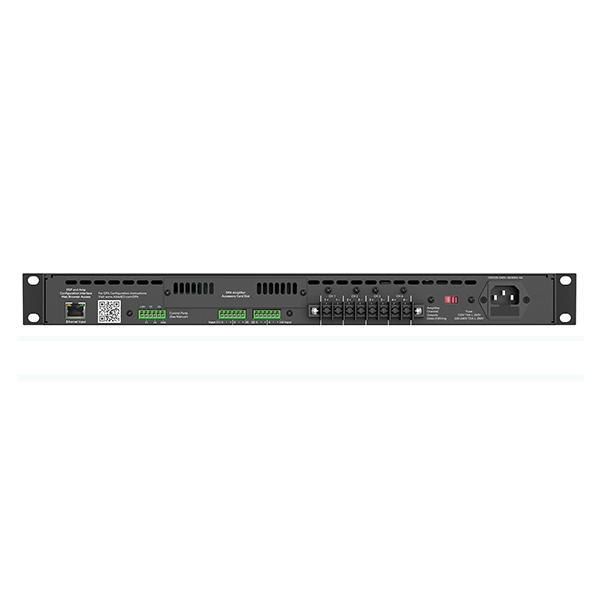

DSP내장 400-WATT 4-CH POWER AMPLIFIER DPA404

제품특징

70.7V, 100V, 8Ω, or 4Ω Functionality

Configurable DSP via GUI

PC Based DPA Site Manager Software

Amplifier Remote Activation via a Scheduler Timer

Optional Accessory Card Slot for a DPA-DAC4 Four-Channel Dante™

Four (4) GPIO Control Ports Assignable in GUI for Mute or Remote Level

PC, iOS®, & Android® Controllable

List 바로가기

규격 및 성능

Power Output 4 x 100-Watts @ 70.7V
Power Output 4 x 100-Watts @ 100V
Power Output 4 x 75-Watts @ 8Ω
Power Output 4 x 50-Watts @ 4Ω
Power Output 2 x 100-Watts @ 70.7V, 2 x 75-Watts @ 8Ω
Power Output 2 x 100-Watts @ 100V, 2 x 50-Watts @ 4Ω
Amplifier Topology Class AB Switching Hybrid -BASH
Input Sensitivity 750mV Balanced, 0dBU
Input impedance Balanced 40k
Maximum Input Signal +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante™
THD 1% @ Rated Output
Frequency Response 20Hz - 20kHz (DSP Filters Set to Flat)
Signal to Noise Ratio >100dB Below Rated output (A-Weighted)
Crosstalk 73dB @ 1kHz
Voltage 110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz
Rack Units 1
Height 45mm
Width 483mm
Depth 394mm
Weight 5.92kg
Voltage Compatibility Universal
